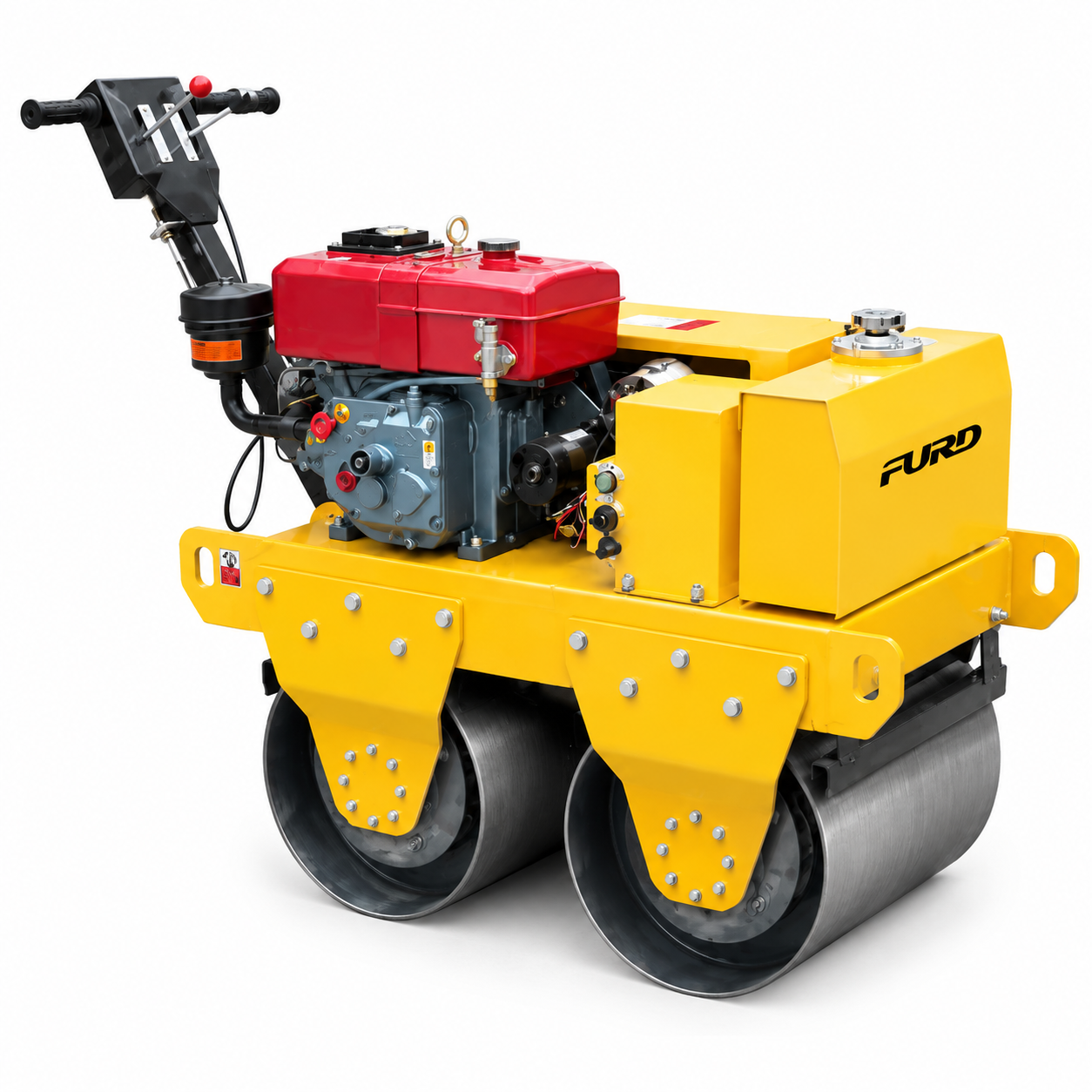

Baby Roller – FURD FYLS600CS
Spesifikasi :
Brand: FURD
Type: FYL-S600CS
Max. Travel Speed: 4 km/h
Gradeability: 30% / ≤15°
Drive Type: Hydraulic Station
Vibration Control: Auto / Elecro Clutch
Vibration Frequency: 70 Hz
Exciting Force: 20 kN
Water Tank: 20 Liters
Hydraulic Oil Tank: 21 Liters
Engine Model: Diesel Changfa CF180
Engine Power: 7 hp
Starting Mode: Electric & Hand
Wheel Size Front: 425 x 600 mm
Wheel Size Rear: 425 x 600 mm
Weight: 600 kg
Package Size: 1450 x 1100 x 1200 mm
