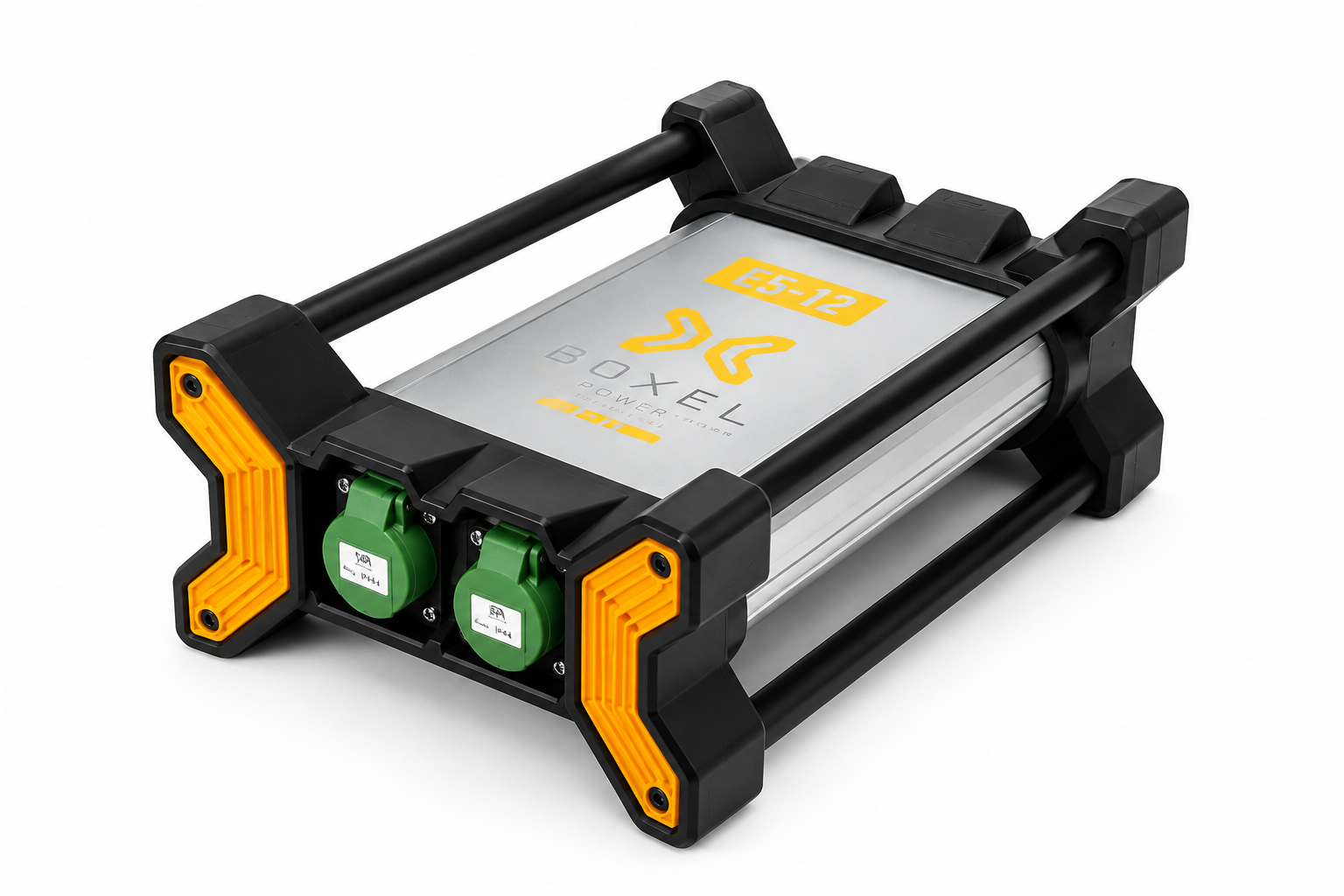

Electronic Frequency Converter – ENAR BOXEL 215
Spesifikasi :
- Brand: ENAR
- Type: BOXEL215
- No. Outlets: 2
- Input Voltage: 230 V, 1 ~, 50 – 60 Hz
- Input Power: 1.7 kVA, 7.2 A
- Output Voltage: 42 V, 3~, 200 Hz
- Output Power: 1.5 kVA, 21 A
- Weight: 9 kg
Deskripsi
Electronic Frequency Converter – ENAR Boxel 215 adalah alat pengubah frekuensi elektronik (electronic frequency converter / inverter) portabel yang digunakan untuk mengalirkan daya ke alat pemadat beton frekuensi tinggi (concrete vibrator atau vibrating needle).
Produk Terkait
-
High Frequency Converter AFE2000MT 230V
Outlets : 2
Input Voltage : 230 V, 1 ~, 50 Hz
Input Power : 2.0 kW
Output Voltage : 42 V, 3 ~, 200 Hz
Output Power : 1.6 kVA, 23 A
Weight (kg) : 27 Ride-On Trowel RT36H
Engine Model : Honda GX690
Power : 22.1 hp, 16.5 kW
Number of Blade : 2 X (4 blade)
Blade Size (mm) : 350 X 150
Rotor Diameter (mm) : 1920
Weight (kg) : 330
Dimension (mm) : 1960 X 1040 X 1200 High Frequency Converter DHF54 3C
Input : 380 V, 3 ~, 50 Hz
Power Output (kVA) : 4.5
Current Output (A) : 54
Voltage Output (V) : 48 V, 3 ~, 200 Hz
No. of Outlet : 3
Cable Length (m) : 5
Weight (kg) : 37
Dimension (mm) : 725 X 320 X 440 High Frequency Converter DHF36 2C
Input : 380 V, 3 ~, 50 Hz
Power Output (kVA) : 3
Current Output (A) : 36
Voltage Output (V) : 48 V, 3 ~, 200 Hz
No. of Outlet : 2
Cable Length (m) : 5
Weight (kg) : 37
Dimension (mm) : 725 X 320 X 440 High Frequency Converter DHF25 2C 1 pHASA
Input : 380 V, 3 ~, 50 Hz
Power Output (kVA) : 1.8
Current Output (A) : 22
Voltage Output (V) : 48 V, 3 ~, 200 Hz
No. of Outlet : 2
Cable Length (m) : 5
Weight (kg) : 42
Dimension (mm) : 680 X 280 X 360 High Frequency Internal Vibrator ENAR M5AFP
Head Diameter ø50mm
Length of Head 363mm
Current 12A
Voltage Input 42V, 3~ 200Hz
Rotor Speed 12000RPM
Centrifugal Force 3300N
Compaction Capacity 30 m3/h
Shaft Length 5M
Cable Length 10M
Weight 14KgConcrete Truss Screed TS6
Vibration Frequency (rpm) : 2650
Engine Model : Honda GX270
Power (hp) : 9
Weight (kg) : 138.5
Dimension (mm) : 6000 X 3555 X 475 High Frequency Internal Vibrator Avibrass DIVO38C
Head Diameter ø35mm
Length of Head 352mm
Current 8A
Voltage Input 42/48V, 3~ 200Hz
Rotor Speed 12000RPM
Centrifugal Force 1,8kN
Shaft Length 5M
Cable Length 10M
