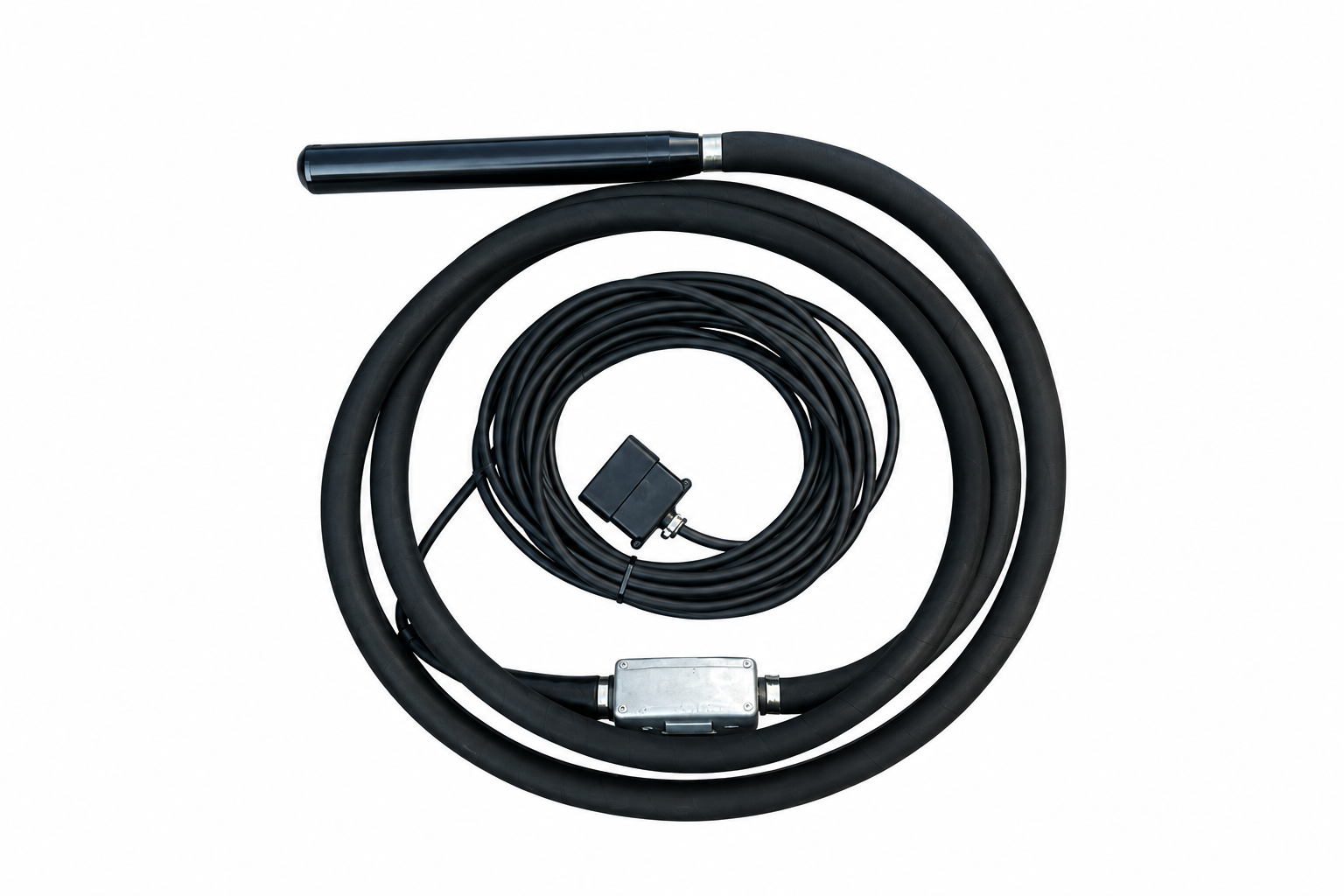

High Frequency Vibrator – MARUIKEN MV50HF
Rp8.900.000
High Frequency Internal Vibrator
Brand: MARUIKEN
Type: MV 50 HF
Head Diameter: 50 mm
Length of Head: 390 mm
Current: 12 A
Power Source: 48 V, 3~, 200 Hz
Oscillation: 12000 rpm
Centrifugal Force: 3500 N
Shaft Length: 5 Meter
Cable Length: 10 Meter
Weight: 13 kg
Plug Type : Japan Plug
-Free ongkir JABODETABEK
-Garansi 6 Bulan free jasa servis dan 3 Bulan Sparepart kerusakan pabrik
note : JIKA ADA KENDALA UNIT SILAKAN BAWA KE TOKO ATAU CHAT TERLEBIH DAHULU
*Jika ingin menanyakan pengiriman bisa chat melalui private chat berikut OBB1 O241 O733O
Stok 10
Deskripsi
High Frequency Vibrator adalah alat pemadat beton yang digunakan dengan cara menggetarkan beton dari dalam menggunakan kepala vibrator (vibrating head) yang dimasukkan langsung ke dalam beton basah. Getaran berfrekuensi tinggi yang dihasilkan akan mengeluarkan udara terperangkap, memadatkan beton, dan menghasilkan struktur yang padat serta homogen.
Produk Terkait
-
Concrete Vibrator – EVERYDAY SHT45X6
Spesifikasi :
- Brand: EVERYDAY
- Type: SHT45x6
- Head Diameter: 45 mm
- Length of Head: 501 mm
- Frequency: 200 Hz
- Rotation Speed: 12000 rpm
- Amplitude: 2.0 mm
- Diameter Hose: 32 mm
- Diameter Shaft: 12 mm
- Shaft Length: 6 Meter
- Weight: 19 kg
High Frequency Vibrator – MARUIKEN MV60HF
High Frequency Internal Vibrator
Brand: MARUIKEN
Type: MV 60HF
Head Diameter: 60 mm
Length of Head: 436 mm
Current: 16 A
Power Source: 48 V, 3~, 200 Hz
Oscillation: 12000 rpm
Centrifugal Force: 4500 N
Shaft Length: 5 Meter
Cable Length: 10 Meter
Weight: 16 kg
Plug Type : Japan Plug
High Frequency Internal Vibrator – ENAR M8AFP
Spesifikasi :
- Brand: ENAR
- Type: M8AFP
- Head Diameter: 75 mm
- Length of Head: 385 mm
- Current: 18 A
- Power Source: 42 V, 3~, 200 Hz
- Oscillation: 12000 rpm
- Centrifugal Force: 9000 N
- Compaction Capacity: 45 m3/h
- Shaft Length: 5 Meter
- Cable Length: 10 Meter
- Weight: 18 kg
Pneumatic Pocker – OLI VHA50
Spesifikasi :
Model VHA 50
CF : 5627
Vibration : 17000
Working Pressure : 6
Air Consumption : 800
Head Diameter : 50
Head Length : 250
Total Weight : 5.8kg
High Frequency Vibrator – OLI VHN50
Spesifikasi :
Vibrating needle diameter : 50 mm
Vibration amplitude : 1.8 ~ 2.3mm
Centrifugal force : 1,700 N ~ 3,080 N
Power Cable : 10 meter
Flexible Hose : 5 meters
High Frequency Internal Vibrator – ENAR M38AFP
Spesifikasi :
- Brand: ENAR
- Type: M38AFP
- Head Diameter: 38 mm
- Length of Head: 370 mm
- Current: 8 A
- Power Source: 42 V, 3~, 200 Hz
- Oscillation: 12000 rpm
- Centrifugal Force: 1500 N
- Compaction Capacity: 20 m3/h
- Shaft Length: 5 Meter
- Cable Length: 10 Meter
- Weight: 11 kg
High Frequency Internal Vibrator – ENAR M6AFP
Spesifikasi :
- Brand: ENAR
- Type: M6AFP
- Head Diameter: 50 mm
- Length of Head: 365 mm
- Current: 10.5 A
- Power Source: 42 V, 3~, 200 Hz
- Oscillation: 12000 rpm
- Centrifugal Force: 3300 N
- Compaction Capacity: 30 m3/h
- Shaft Length: 6 Meter
- Cable Length: 10 Meter
- Weight: 13 kg
SOLD OUT High Frequency Internal Vibrator – WACKER NEUSON IE 38
Spesifikasi :
Diameter of the vibrator head : ⌀38mm
Length of the vibrator head : 285mm
Weight of the vibrator head : 1,5kg
Protective hose : 10 meter
Operating weight : 10,4kg
Effective diameter : 38cm
Vibrations : 12,000rpm
Voltage : 42V
Current : 5 Ampere
Frequency : 200Hz
Power Cable : 15meterSelect at least 2 products
