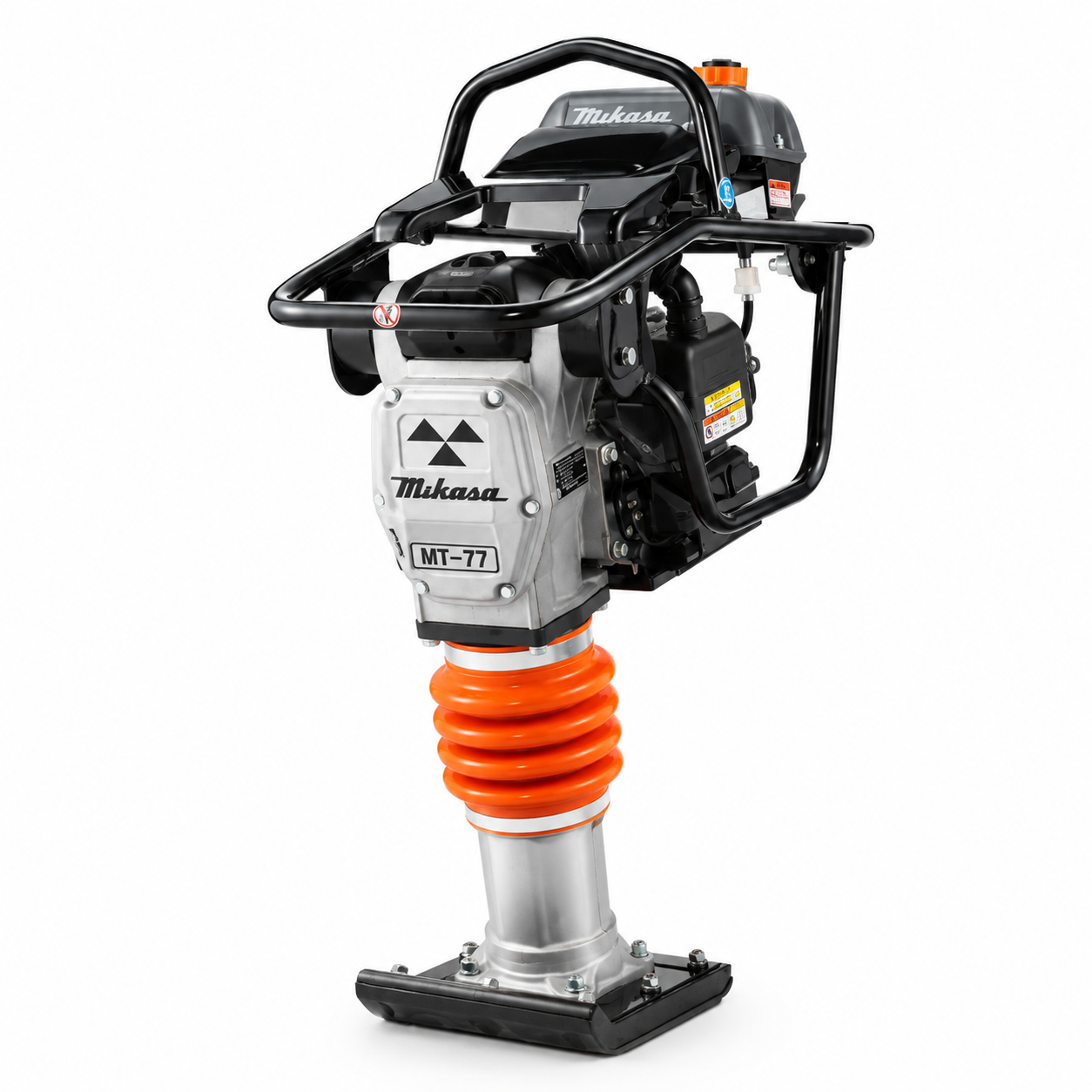

Tamping Rammer – MIKASA MT-77HRL
Spesifikasi :
- Plate Size : 285 x 340 mm
- Jumping Stroke Tamping Rammer : 50-80 mm
- Impact Number Per Minute 644-695
- Merk Mesin Serbaguna : Honda
- Model Mesin Serbaguna : GXR-120
- Kapasitas Tanki Bahan Bakar 2 L
- Dimensi (Pxlxt) : 740 x 375 x 1070 mm
- Berat Bersih : 77 Kg
- Berat Pengiriman : 90 Kg
Deskripsi
Tamping Rammer – MIKASA MT-77HRL adalah mesin pemadat tanah vertikal (sering disebut stamper kuda) bermesin diesel yang digunakan untuk memadatkan tanah, pasir, atau kerikil pada proyek konstruksi.
Produk Terkait
-
Baby Roller – MIKASA MRH 600DSA
Spesifikasi :
- Dimension: 2, 620 x 692 x 1, 130 mm
- Drum Size: Dia: 355 mm, Width: 650 mm
- Vibrating Frequency: 55 Hz ( 3, 300 V.P.M)
- Centrifugal Force: 10, 8 kN ( 1, 100 kgf)
- Traveling Speed: 0-3 km/ h
- Limited Gradeability: 20%
- Water Tank: 40 liters
- Oil Tank: 25 liters
- Power Source: Engine Diesel ( 6.5PS)
- Weight: 620 kg
Ride-On Roller Vibrator – FURD FYL1200
Spesifikasi :
- Type: FYL-1200
- Max. Travel Speed: 12 km/h
- Gradeability: 30% – 40%
- Drive Type: Hydraulic Transmission
- Vibration Control: Hydraulic Vibration
- Vibration Frequency: 60 Hz
- Exciting Force: 2 X 30 kN
- Amplitude: 0.5 mm
- Static Linear Load: 125/115 N/cm
- Water Tank: 200 Liters
- Hydraulic Oil Tank: 48 Liters
- Engine Model: Diesel Changfa
- Engine Power: 34.5 hp, 25.8 kW
- Starting Mode: Electric
- Wheel Size Front: 700 x 1200 mm
- Wheel Size Rear: 700 x 1200 mm
- Weight: 2900 kg
- Package Size: 2800 x 1515 x 2050 mm
Plate Compactor C160H
Engine Model : Honda GX270
Power (hp) : 8.5
Max. Travel Speed (m/min) : 20
Vibrating Frequency (vpm) : 4500
Centrifugal Force (kN) : 30
Direction : Reversible
Weight (kg) : 700 X 500
Shoe Size (mm) : 146
Dimension (mm) : 785 X 480 X 1090 Plate Compactor – MARUIKEN MPC80C
Spesifikasi :
- Type: MPC 80C
- Plate Size: 530*460mm
- Centrifugal Force: 15KN
- Compaction Depth: 30cm
- Forward Speed: 30cm/min
- Impact Freq.: 5500 rpm
- Weight: 70 KG
Plate Compactor C80H
Engine Model : Honda GX160
Power (hp) : 5.5
Max. Travel Speed (m/min) : 21
Vibrating Frequency (vpm) : 4930
Centrifugal Force (kN) : 14
Direction : Forward
Weight (kg) : 520 X 500
Shoe Size (mm) : 85
Dimension (mm) : 750 X 525 X 540 Baby Roller – SAKAI HV60ST
Spesifikasi :
- Brand : Sakai
- Model : HV60ST
- Vibration Force: 11.8 KN
- Vibration Frequency: 55 Hz
- Compaction Width: 635 mm
- Maximum Speed: 3.5 km/h
- Maximum Gradability: 25%
- Engine Manufacturer: Yanmar
- Model: N-FAD6
- Maximum Output: 4.0 KW
- Starting Method: Cell / crank
- Fuel Tank Capacity: 4.7 L
- Water Tank Capacity: 30 L
- Length: 2400 mm
- Width: 1170 mm
- Height: 680 mm
- Weight: 640 kg
Plate Compactor – EVERYDAY C160D
Spesifikasi :
- Brand: EVERYDAY
- Type: C160D
- Engine Model: Diesel 178F
- Engine Power: 6.0 hp
- Max. Travel Speed: 20 m/min
- Vibrating: 4500 rpm
- Centrifugal Force: 30 kN
- Direction: Reversible
- Shoe Size: 700 x 500 mm
- Weight: 170 kg
- Package Size: 835 x 540 x 1040 mm
Baby Roller – TIGON TGVR600C
Spesifikasi :
- Model : TG – VR 600 C
- Engine Model : MGX – 178 FE
- Power : 7 Hp
- Walk speed : 0 – 4 km/h
- Climbing capacity : 30
- Drive type : Hydrostatic drive
- Vibraton Control : Electromagnetic clutch
- Nominal amplitude : 0.7 mm
- Vibration Frequency : 70 hz
- Exciting Force : 20 kn
- Water tank : 50 L
- Hydraulic oil tank : 0.3 L
- Starting mode : Hand and electric
- Steel wheel size : 450 x 600 mm x 2
- Net wight : 550 kg
- Dimension : 1450 x 900 x 1920 mm
