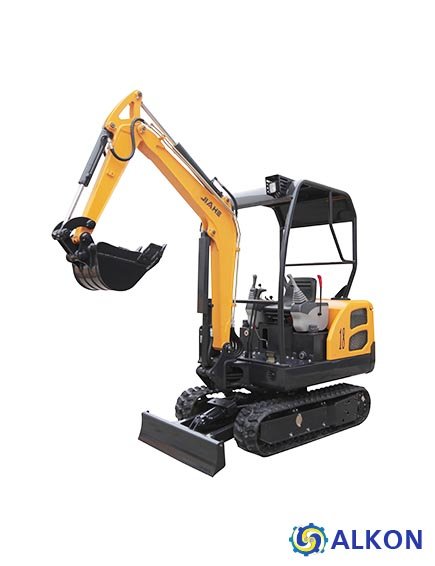

Jual-alat-konstruksi-Mini-Excavator_JH-18-Jiahe_1
Spesifikasi Mini Excavator JH-18
Machine Size
Dimension (mm) : 3865 X 1050 X 2270
Cabin Height (mm) : 2270
Sproket Idler (mm) : 1230
Wheel (Track) Gauge (mm) : 820
Min. Ground Clearance (mm) : 210
Tail Swing Radius (mm) : 1125
Working Range
Max. Digging Height (mm) : 3365
Max. Dumping Height (mm) : 2385
Max. Digging Depth (mm) : 2050
Max. Vertical Digging Depth (mm) : 1955
Max. Digging Radius (mm) : 3860
Min. Swing Radius (mm) : 1125
Max. Dozer Blade Lifting Distance (mm) : 230
Max. Dozer Blade Cutting Distance (mm) : 275
Boom Swing Angle Left (o) : 75
Boom Swing Angle Right (o) : 45
Spesifikasi Mini Excavator JH-18
Machine Size
Dimension (mm) : 3865 X 1050 X 2270
Cabin Height (mm) : 2270
Sproket Idler (mm) : 1230
Wheel (Track) Gauge (mm) : 820
Min. Ground Clearance (mm) : 210
Tail Swing Radius (mm) : 1125
Working Range
Max. Digging Height (mm) : 3365
Max. Dumping Height (mm) : 2385
Max. Digging Depth (mm) : 2050
Max. Vertical Digging Depth (mm) : 1955
Max. Digging Radius (mm) : 3860
Min. Swing Radius (mm) : 1125
Max. Dozer Blade Lifting Distance (mm) : 230
Max. Dozer Blade Cutting Distance (mm) : 275
Boom Swing Angle Left (o) : 75
Boom Swing Angle Right (o) : 45
