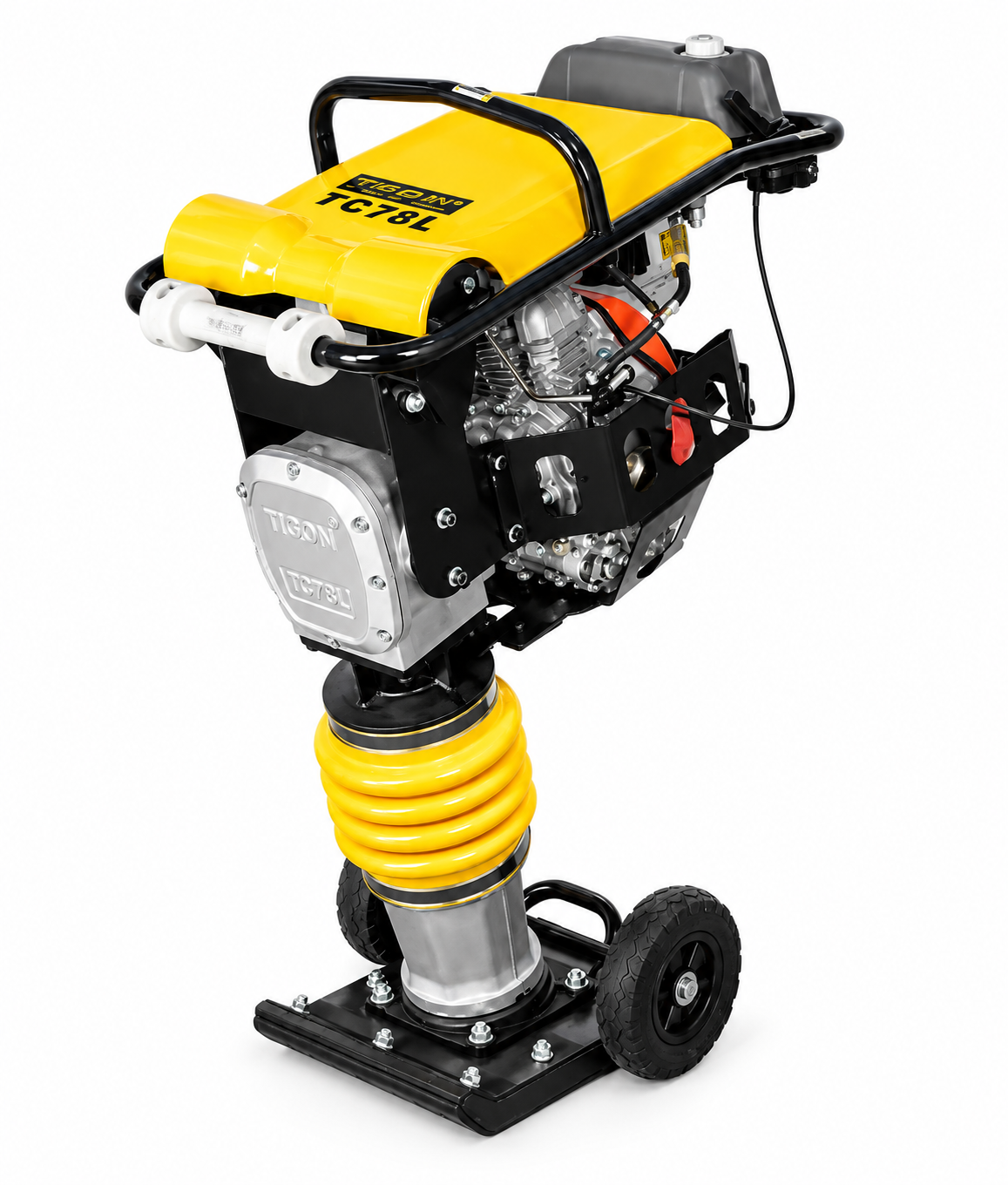

Tamping Rammer – TIGON TG-RM80 D
Spesifikasi :
- Model : TG RM80 D
- Power : 5hp
- Impact Force : 10kn
- Frequency : 450 – 660 r/min
- Jump Stroke : 40 – 65mm
- Travel Speed : 9 – 12 m/min
- Plate Size : 340 x 290 mm
- Fuel Tank : 2.8 L
- Net Weight : 75 kg
- Dimension : 570 x 510 x 1040mm
- Ckg disel
Deskripsi
Tamping Rammer – TIGON TG-RM80D biasa digunakan untuk proyek pembuatan jalan dan konstruksi. Dapat juga digunakan saat pekerjaan galian: saluran air, pondasi pipa, gorong-gorong dan sebagainya. Menghilangkan udara dan memadatkan tanah, pasir maupun kerikil. ujuan pemadatan agar struktur tanah padat dan kompak. Mesin ini membantu proses pemadatan lebih cepat dan efektif.
Produk Terkait
-
Plate Compactor – TIGON TG-CR330
Spesifikasi :
- Model : TG CR 330
- Engine : MGX-390
- Power : 13 hp
- Impac force : 30 kn
- Travel speed (cm / s) : 25
- Plate size (mm) : 890 x 670
- Effeciency (m/h) : 650
- Compaction Depth (cm) : 50
- Net weight (kg) : 305
- Dimension (cm) : 97.5 x 54 x 114
Plate Compactor – TIGON TG-C80T
Spesifikasi :
- Model : TG C80
- Engine : MGX-160
- Power : 5.5 hp bensin
- Frequency (vpm) : 5500
- Centrifugal force : 13.5
- Compaction Depth (cm/in) : 30 / 12
- Travel speed (cm / s) : 20 25
- Efficiency (m/h) : 450
- Climb Ability : 0-30
- Plate size (mm) : 570 x 480
- Water tank (L) :
- Dimension (cm) : 76.5 x 49.5 x 68
Tamping Rammer ETR80H
Engine Model : Honda GX160
Power (hp) : 5.5
Fuel Tank (l) : 2.0
Impact Force (kN) : 10
Impact Number : 450 – 650/min
Jumping Stroke (mm) : 40 – 60
Shoe Size (mm) : 330 X 290
Weight (kg) : 79
Dimension (mm) : 1080 X 420 X 760Tamping Rammer Dragon TRD90H Honda GX160
Tipe Mesin Honda GX160 4-stroke, overhead valve 25° inclined, single cylinder, horizontal shaft Isi Silinder 163 cm³ Diameter x langkah 78.0 x 72 mm Rasio Kompresi 9.0 : 1 Tenaga Output Kotor (SAE J1995) (5.5HP)/3600rpm Impact energy 12 kN Impact Frequency 460 ~ 650 times/min Leap height 40 – 65 mm Tank Capacity 3,1 Liters Bottom Platesize 330 x 280 mm Nett Weight 78 kgs Gross Weight 102 kgs Dimension 750 x 500 x 1000 mm Tamping Rammer – HABARA HTR80
Spesifikasi :
- Power: 4HP (3kW)
- Daya Listrik : 3000 Watt
- Voltage: 220V (1phase)…JUGA ADA OPSI 1 PHASE
- Jumping Height: 45-70mm
- Impact Force: 13 kN
- Plat Size: 270x290mm
Baby Roller – MIKASA MRH 600DSA
Spesifikasi :
- Dimension: 2, 620 x 692 x 1, 130 mm
- Drum Size: Dia: 355 mm, Width: 650 mm
- Vibrating Frequency: 55 Hz ( 3, 300 V.P.M)
- Centrifugal Force: 10, 8 kN ( 1, 100 kgf)
- Traveling Speed: 0-3 km/ h
- Limited Gradeability: 20%
- Water Tank: 40 liters
- Oil Tank: 25 liters
- Power Source: Engine Diesel ( 6.5PS)
- Weight: 620 kg
Baby Roller – FURD FYLJ700CS
Spesifikasi :
- Type: FYL-J700CS
- Max. Travel Speed: 4 km/h
- Gradeability: 30% / ≤15°
- Drive Type: Hydraulic Drive
- Vibration Control: Auto Clutch
- Vibration Frequency: 70 Hz
- Exciting Force: 20 kN
- Water Tank: 50 Liters
- Hydraulic Oil Tank: 0.3 Liters
- Engine Model: Diesel Changfa CF180
- Engine Power: 7 hp
- Starting Mode: Electric & Hand
- Wheel Size Front: 425 x 600 mm
- Wheel Size Rear: 425 x 600 mm
- Weight: 550 kg
- Package Size: 1450 x 900 x 1920 mm
Tamping Rammer ETR80D
Engine Model : Diesel 170F
Power (hp) : 4.2
Fuel Tank (l) : 2.8
Impact Force (kN) : 10
Impact Number : 450 – 650/min
Jumping Stroke (mm) : 40 – 60
Shoe Size (mm) : 345 X 285
Weight (kg) : 88
Dimension (mm) : 1040 X 510 X 570Select at least 2 products
